Wireshark for the
radio spectrum

Leave a cheap dongle on a band and WaveShark tells you what is transmitting around you, instead of what is on the one frequency somebody already told you about.

Download for Linux and Windows Read the source

GPL-3.0 · RTL-SDR, HackRF One, LimeSDR · no account, no cloud

TIMEFREQMODSNRDECODED AS

    The dial is where you look. The span is what you collect.

    Decoding does not follow the dial. Every scanner inside the sampled span runs all the time, so a sensor that transmits once a minute is caught whether or not you were pointing at it when it fired.

    Everything heard goes in the list along the bottom, decoded or not: frequency, modulation, RSSI, SNR and what was made of it. Click a row for its envelope, its instantaneous frequency and a hex dump. A burst nothing claims still gets its coding inferred and its bits sliced out, which is enough to recognise the same device again and start reversing it.

    Organised by where you point the radio

    What it hears

    • 433 / 868 / 915 MHz

      ISM devices

      39 decoders, most from rtl_433's family. Weather stations, thermometers, TPMS, door contacts, gate remotes, shelf labels, mostly with a stable device ID you can follow.

    • 1090 MHz

      Aircraft

      ADS-B and Mode S onto a map with a track table: callsign, altitude, speed, track, position.

    • Marine VHF

      Shipping

      AIS positions and vessel identity, on the same map as the aircraft.

    • 144.800 / 144.390 / 144.640

      APRS

      Packet stations and vehicle trackers, Mic-E included, on the EU, US and JP calling frequencies.

    • Wherever you point it

      Pagers

      POCSAG at 512, 1200 and 2400 bit/s, message text in clear.

    • 136-174 / 400-470 MHz

      DMR

      Who called whom on which talkgroup, and speech through the ambe feature.

    • 390-400 MHz

      TETRA

      The network, its cells and who is called, with decryption and key recovery under the tea feature.

    • Amateur VHF and UHF

      M17

      Who called whom, for how long, packet messages in full, and Codec 2 speech.

    • 433 / 868 / 915 MHz

      LoRa mesh

      LoRaWAN join requests and addresses, Meshtastic text under the public keys, MeshCore adverts.

    • 868.95 MHz

      Utility meters

      Wireless M-Bus mode T: manufacturer, meter number, version and type.

    • Any band

      Voice

      WFM with stereo and RDS, NFM, AM, USB, LSB and CW, several channels at once.

    • 2.4 GHz

      Wi-Fi and drones

      802.11a/g/b and single-stream n: network names, the addresses talking, the rate each frame arrived at and whether an address is randomised. A drone broadcasting Remote ID gives up its serial, position and operator. Needs a HackRF or a LimeSDR, since one channel is 20 MHz wide.

    • 2.4 GHz

      Bluetooth LE

      Advertising, Bluetooth 5 Long Range included, and Open Drone ID carried in it.

    • 900 / 1800 MHz

      GSM

      A cell's identity off its synchronisation burst, the blocks it broadcasts, who a page is calling, and the channel a phone is sent to.

    • 2.4 GHz / 868 / 915 MHz

      RC links

      ExpressLRS with the sticks read, plus FrSky ACCST, FlySky AFHDS-2A and XN297 remotes.

    • 1.2 / 2.4 / 5.8 GHz

      Analogue video

      A camera's picture straight off the span, PAL or NTSC, in colour, with the lines received counted because nothing in analogue video checks itself.

    • On a radio that can

      Transmit

      A microphone or a tone into NFM, WFM or AM, drawn as the TX side of the same flow graph.

    docs/protocols.md is the roadmap. ISM coverage is the thin part: rtl_433 has roughly 250 device decoders and matching it is the job.

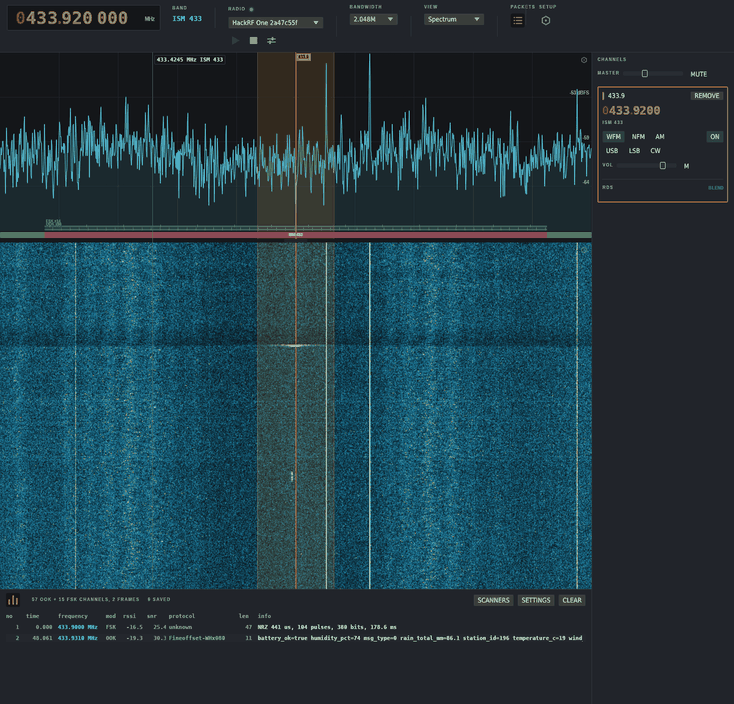

    WaveShark decoding a weather station on 433.92 MHz: spectrum and waterfall above, packet list below.
    Decoding a weather station on 433.92 MHz. The view selector swaps the spectrum for the signal chain, the map and its track table, the call list, the messages, or the keys.

    Ctrl and a digit selects one, Ctrl+` goes back

    Ten views on one stream

    Every decoded frame arrives in one place, and each view is a different reading of it. None of them knows a protocol: a DMR call, a TETRA call and an M17 call are the same row with different fields filled in, and an aircraft, a vessel and a mesh node are the same track. The packet list runs along the bottom of all of them, newest last, with the selected burst's envelope, instantaneous frequency and hex dump beside it.

    1. 1

      Spectrum

      The span and its waterfall. Click to place a channel and listen, drag to pan, scroll to scrub, hold shift to snap to the band plan.

    2. 2

      Signal chain

      The graph the receiver is running, drawn. Manual mode edits it, and a transmitter is the same graph with the arrows the other way.

    3. 3

      Map

      Aircraft, vessels, vehicles and mesh nodes on OpenStreetMap tiles. A hollow mark came from a single frame and never joins a trail; range rings are drawn around the antenna, not the window. Past zoom nine, airports appear with their air traffic frequencies.

    4. 4

      Calls

      Who is talking, on anything that decodes speech. Picking a call is asking to hear it, and a local Whisper model puts the words beside it.

    5. 5

      Messages

      Everything carrying text, whether it came from a pager capcode, a TETRA talkgroup or a mesh channel. The same words twice inside two minutes are one message with a count, because a pager sends every page twice.

    6. 6

      Links

      Who is talking to whom, on every protocol at once. Wireshark's conversation list for radio: pick a link and the packets it carried open underneath, with the payload where the protocol gives one in the clear.

    7. 7

      Devices

      One row per transmitter that identified itself rather than one per transmission: what it called itself, who made it, the strongest level it was ever heard at, when it was last heard. Selecting a row draws its sightings on the map, and a drive exports as WiGLE CSV.

    8. 8

      Satellites

      The one view showing something nobody has heard yet: every pass over the station in the next day, with peak elevation, where to point, live az/el and Doppler, and how stale the elements are. Listening follows the downlink across the pass and closes when the satellite sets.

    9. 9

      Video

      Whatever picture is on the span. The caption counts the lines that arrived, and the pane clears half a second after the last field, because a still of a transmitter that has gone is worse than an empty screen.

    10. 0

      Keys

      A row per enciphered channel and what is known about its key. The monitor is always there; decryption and key recovery need the tea feature.

    Three radios, and one over the network

    Hardware

    • from about €30

      Any RTL2832U dongle

      Does all of the receiving on this page. Install librtlsdr0 or rtl-sdr on Linux for the udev rules; on Windows, bind WinUSB with Zadig first.

    • 1 MHz - 6 GHz

      HackRF One

      Buys you wider spans and a transmitter.

    • USB and Mini

      LimeSDR

      Both of those, plus full duplex. Linux builds only: LimeSuite is not packaged for Windows.

    • --stream <host>

      A tuner on another machine

      An iqstream server shows up as a local radio, so the antenna can live where the signals are.

    Capture once, decode forever

    A capture that decodes is a test fixture

    --record writes each burst as an rtl_433 style capture, so both WaveShark and rtl_433 can read it back. Capture a band once, then replay after every change: no radio, same answer every time.

    $ waveshark --tune 868.3 --record captures
$ waveshark --replay captures

--tune <mhz>        start tuned and listening
--mode <mode>       wfm, nfm, am, usb, lsb or cw
--span <khz>        nearest span, narrowed in software
--stream <host>     offer an iqstream server as a radio
--headless          run with no window, scanning and logging
--print-log         print every packet as it arrives
--fetch-data        warm the dataset cache before going offline

    Status

    Checked against other people's decoders

    52 recordings from rtl_433's corpus are replayed field for field against what rtl_433 25.02 made of them. ADS-B is asserted against dump1090. Off-air captures of M17, DMR, TETRA and Meshtastic are checked against what the transmission itself says.

    The browser build is still a plan, and the decoder count is the part that needs to grow. docs/design.md is how it works inside.

    Plug in a radio and press play.

    It opens on 433.92 MHz, where the devices it decodes are.

    Download WaveShark
